Why Conventional Cooling Is the Biggest Hidden Cost in Large Automotive Panel Tooling

A door inner panel mold running at a Tier 1 supplier in central Europe had a cycle time of 62 seconds. The part — a large PP talc-filled structural component measuring 980 × 540mm — consistently showed 1.6mm of bow across the lower belt line, right at the B-surface datum used for door seal attachment. The customer was BMW. The tolerance was ±0.6mm. Every part was failing.

Three months of process optimization — melt temperature adjustments, hold pressure profiling, packing time trials — moved the bow from 1.6mm to 1.4mm. Not enough. The problem was not the process. It was that the cooling system could not remove heat uniformly from a wall section that varied between 2.8mm and 5.5mm across the part, because every waterline was straight-drilled from the mold block face and terminated well short of the deepest draw areas.

When we redesigned the tool with conformal cooling inserts in the three critical zones, bow dropped to 0.3mm and cycle time fell to 44 seconds. That 18-second reduction, on a two-cavity tool running three shifts, recovered the cost of the cooling upgrade in under six weeks of production.

What cooling actually controls

Cooling is responsible for roughly 60–70% of total injection mold cycle time. It also governs part quality in ways that process engineers often misattribute to resin, gate position, or packing pressure. When a part warps, sinks, or holds residual stress, the first question should always be whether the cooling system is removing heat evenly — not whether a process parameter needs adjustment.

The physics is straightforward: plastic shrinks as it cools, and it shrinks anisotropically. If one region of a part cools significantly faster than an adjacent region, differential shrinkage creates internal stress. For thin-to-thick transitions — rib intersections, boss pads, seal flanges — that stress resolves after ejection as visible warpage, often hours after the part leaves the press.

Conventional straight-drilled waterlines approximate this in simple, uniform geometries. They fail systematically in large panels with complex draw, deep ribs, and variable wall sections — exactly the parts that dominate exterior and interior automotive programs at OEMs like Mercedes-Benz and BMW.

Where straight-drilled cooling breaks down

1. Geometric shadow zones

Drill bits travel in straight lines. For any deep-draw feature — a structural rib more than 40mm tall, a deep boss, a curved panel with significant Z-height — there is a thermal shadow behind the feature where no waterline can reach. Heat accumulates in these zones. The plastic in contact with the shadow zone cools last, contracts last, and pulls the part out of flat.

2. Minimum distance constraints

Conventional waterlines must maintain a minimum distance from the cavity surface — typically 12–15mm for steel — to prevent stress concentration and thermal breakthrough. For thin ribs or sharp features, this minimum distance means the cooling circuit is often 20–30mm away from the highest heat-flux surface in the tool. The result is slow, uneven extraction precisely where the part needs it most.

3. Flow rate compromises

Long straight circuits running from one face of the mold block to the other accumulate pressure drop over their full length. In large tools — blocks exceeding 600mm — the flow rate required to maintain turbulent conditions (Reynolds number above 4,000) at the far end of the circuit demands inlet pressures that the cooling manifold cannot consistently supply. Sections of the circuit run in laminar flow, cutting heat transfer efficiency by 40–60% compared to turbulent conditions.

4. Warpage locked in before ejection

The most expensive consequence of non-uniform cooling is that the stress profile is fixed before the part leaves the mold. No fixture, no secondary operation, and no process adjustment downstream can fully correct for differential shrinkage that has already resolved into the part's geometry. The only fix is the cooling system itself.

How conformal cooling works

Conformal cooling channels follow the contour of the cavity surface at a consistent distance — typically 8–12mm from the mold steel — regardless of part geometry. Because they are not limited to straight-line drill paths, they can reach shadow zones, maintain constant proximity around curved features, and distribute cooling uniformly across wall sections that vary significantly in thickness.

These channels cannot be machined conventionally. They are produced by one of two methods: metal additive manufacturing (laser powder bed fusion, most commonly in tool steel grades such as 1.2709 or H13) for full inserts or cavity blocks, or high-pressure copper-alloy brazing for hybrid constructions where only specific zones need conformal geometry. Each method has different cost implications, lead times, and thermal performance characteristics.

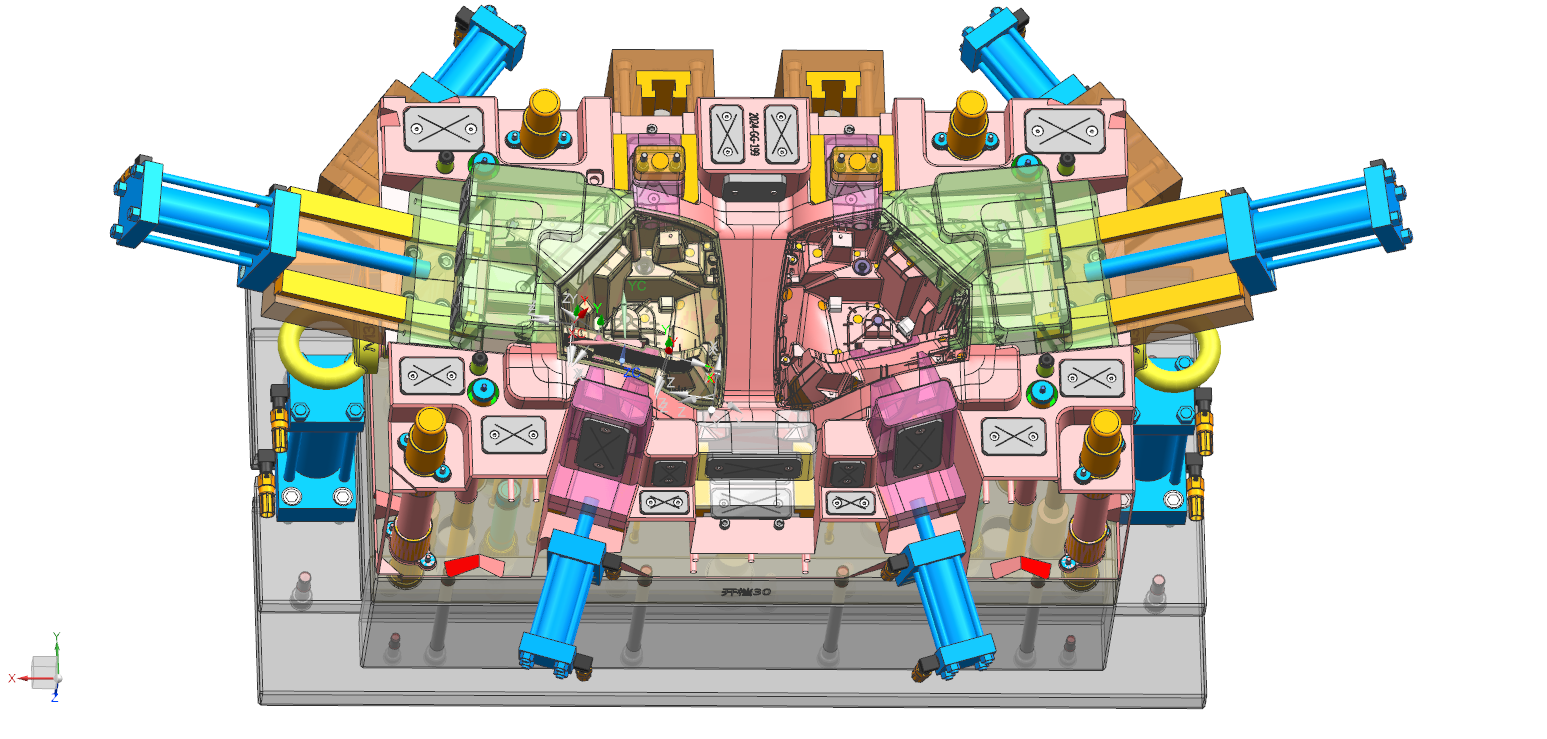

Our process: how we design and validate a cooling system before tool build

Real-world result: door inner panel mold, BMW Tier 1 program

When conformal cooling is — and is not — the right answer

Conformal cooling carries a cost premium. The decision to specify it should be driven by a clear economic case, not by technology preference. Here is the decision framework we use with customers at the start of every large panel program:

• Cycle time sensitivity. On a two-cavity tool running three shifts, every second of cycle time reduction is worth roughly 6,000–8,000 additional shots per year. At automotive volumes, an 18-second reduction pays for LPBF inserts in weeks, not months.
• Wall section variation. Parts with more than 2:1 wall thickness ratio across a single flow path are high candidates. Uniform thin-wall parts on shallow tools are not.
• Class A or precision datum surfaces. Any surface held to ±0.5mm or tighter, or any surface that feeds a downstream seal or assembly operation, warrants thermal analysis before defaulting to conventional cooling.
• Tool life and volume. Conformal inserts add upfront cost. On a 300,000-shot tool for a niche program, the economics rarely close. On a 2,000,000-shot production tool for a volume platform, they almost always do.

The most common mistakes in automotive cooling design

After reviewing dozens of problem tools, three patterns appear repeatedly:

• Designing cooling last. Cooling circuits are often routed around the ejector pattern, runner system, and slide mechanisms — whatever space is left. The result is a cooling system defined by what the tool has room for, not by what the part requires. Cooling layout must be established alongside cavity and core design, not after.
• Optimizing for flow rate, not uniformity. A high-flow manifold delivering coolant at 25°C means nothing if the circuit geometry concentrates that coolant in accessible zones and leaves shadow areas to air-cool. Temperature delta across the surface is the metric that matters, not inlet temperature or flow rate alone.
• Skipping thermal simulation on "standard" tools. Large flat panels with simple apparent geometry can mask severe internal cooling problems — especially where deep ribs interrupt otherwise uniform wall sections. There is no panel geometry simple enough to skip thermal validation on a precision automotive program.
